Any specialist can help with attached photo to connect them together Thank You very much? Driving me crazy.

Boss, tested the motor did not run after disconnected, then i connect back all the line except self learning line, twist the throttle motor not running.

Voltage were correct, the red black line for 3 speed got any use? break line should be white & yellow right?

I measure the volts is at 38V + ...I did try to open my throttle seem the magnet is not stable on the holder,

Can the self study line connect to red green or black will it help?

Sorry Bro cause some wire which i not using need to do any bypass so that it can became a circuit ?

Boss sorry will the Thin red Thin  grey Tine purple line affect cause purple is motor lock Alarm wire, The three gear speed RED/Black wire don't need to connect or bypass?

Now i open up my Throttle red line drop out from twist turning area, how actually the throttle works? I found a thing like magnet, i got soldering machine but i try combine it using test pen motor still don't run...

Thanks Boss really is my Throttle cause i join white & Red it move now is i don't know where should i put in my black.....

But seems like jerking i think there is a control or fuse that control it?

Thank You, you really help a lot le, Now is the battery i remember i connect a black line to my controller it turn red which means the charging is going on, also test by meter, will this be an error then correct. Thank You so much for your help at least now can move not like earlier totally wasted burn 2 controller...Thank You.

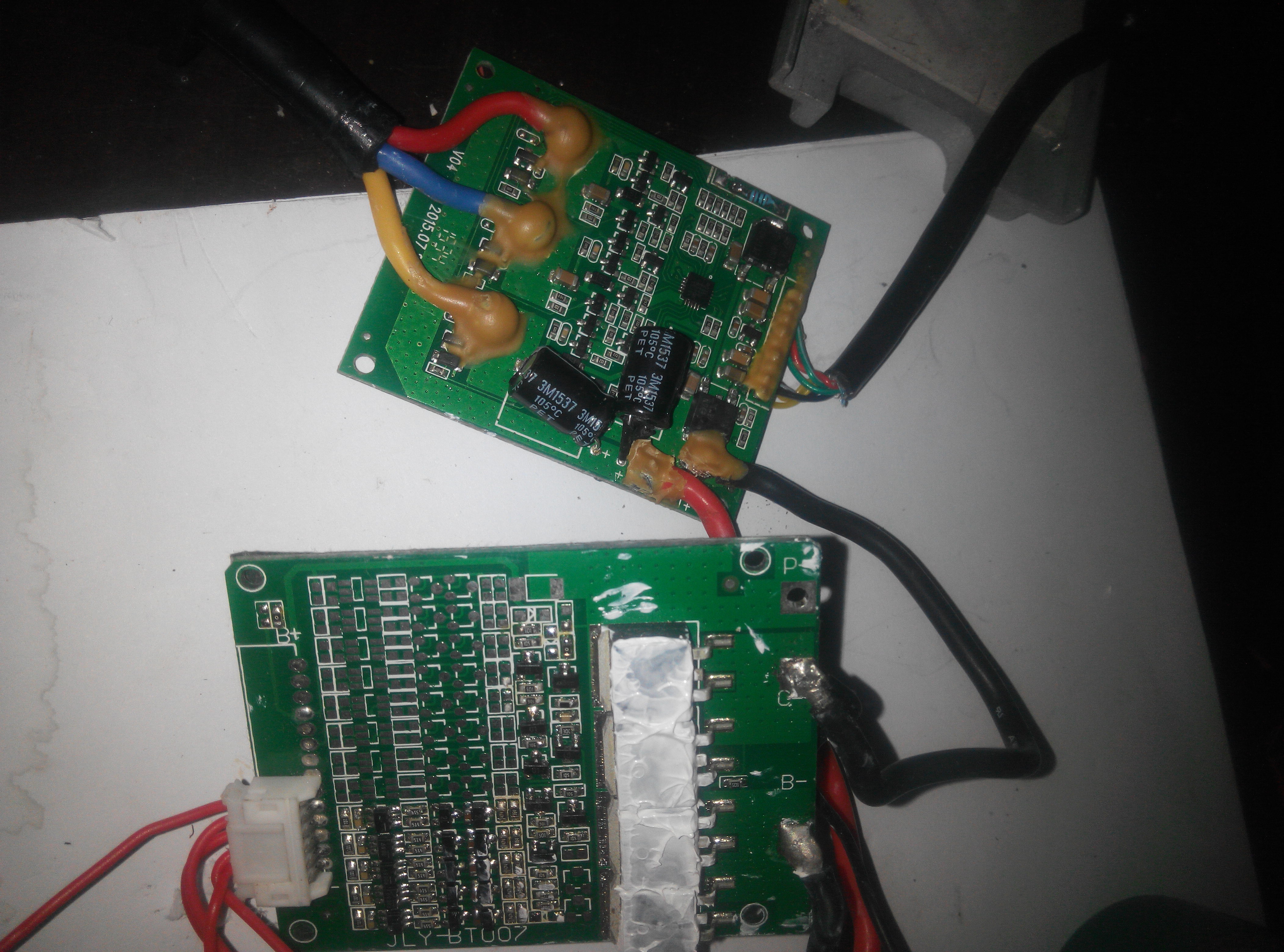

Hi for this X7, i burn in the wrong resistor & believed already burn the controller, battery is due to corrosive, now i still thinking of way to burn the capacitor & resistor can help me to know usually which electronic parts burn faster then others? The black is the one i burn in & controller looks spoil.
